Top Vinyl Windows Plans: A Definitive Guide to High-Performance Fenestration

Top vinyl windows plans the integration of unplasticized polyvinyl chloride (uPVC) into the American building envelope represents one of the most significant shifts in material science within the residential construction sector. While initially viewed as a budget-conscious alternative to traditional timber or aluminum frames, contemporary vinyl has undergone a radical chemical and structural transformation. Today, it serves as a high-performance substrate capable of meeting the stringent thermal requirements of Passive House standards while maintaining the structural rigidity necessary for high-wind-load environments. Navigating the selection of these systems requires an analytical approach that transcends mere aesthetic preference, focusing instead on the molecular stability and mechanical engineering of the frame.

In the United States, the performance of a window system is largely dictated by its “chambering”—the internal web of air pockets designed to disrupt the path of thermal transfer. As energy codes become increasingly aggressive, the distinction between “builder-grade” extrusions and high-performance architectural vinyl has widened. The former often relies on thin walls and minimal internal support, leading to potential warping or “smiling” under extreme UV stress. The latter utilize multi-chambered profiles, often reinforced with carbon fiber or aluminum, to provide the structural integrity typically associated with much more expensive materials.

Achieving a successful installation involves more than selecting a brand; it requires a comprehensive strategic approach to procurement and building integration. This process must account for regional climatic variables, the chemical composition of the vinyl (specifically the ratio of titanium dioxide used as a UV stabilizer), and the mechanical tolerances of the opening itself. For the sophisticated stakeholder, a window is not a static aperture but a dynamic component of the building’s mechanical system. This analysis explores the technical depths of modern vinyl fenestration, providing a definitive framework for long-term asset protection and thermal optimization.

Understanding “top vinyl windows plans”

When professionals discuss top vinyl windows plans, they are referring to a holistic strategy that encompasses material specification, thermal zoning, and structural integration. A common misunderstanding in the residential sector is the belief that all vinyl is created equal. In reality, the “plan” is the differentiator. A plan that prioritizes high-quality extrusions but fails to account for the expansion and contraction rates of vinyl relative to the building’s siding will ultimately result in air infiltration and seal failure. Excellence in this category is found at the intersection of chemistry and carpentry.

One risk of oversimplification involves the reliance on NFRC (National Fenestration Rating Council) labels in isolation. While a U-factor of 0.20 is impressive on paper, a “top” plan recognizes that this number is only achievable if the “as-built” conditions match the “as-tested” laboratory environment. This requires a transition from viewing windows as individual units to viewing them as a continuous thermal barrier. Furthermore, the plan must address the “Optical Clarity” of the glass package; high-performance vinyl frames are often paired with low-iron glass and spectrally selective coatings to ensure that energy efficiency does not come at the cost of interior light quality.

A sophisticated plan also accounts for “Sovereignty of Material.” In the American South, where UV radiation is relentless, a plan must specify vinyl with a higher concentration of Titanium Dioxide ($TiO_2$) to prevent “chalking” or brittleness. In the North, the focus shifts to “Multi-Chambered” insulation and the use of warm-edge spacers to mitigate condensation at the glass perimeter. Therefore, a top-tier approach is never universal; it is a bespoke response to the thermodynamic stressors of the specific geographic site.

Deep Contextual Background: The Industrialization of uPVC

Top vinyl windows plans the American window market was historically dominated by wood, a material that provided natural insulation but required significant maintenance. The 1970s energy crisis catalyzed the search for a more airtight and maintenance-free alternative. This led to the importation of European uPVC technology, which was initially met with skepticism due to the “plastic” appearance and the tendency of early vinyl to turn yellow or warp in the high-heat American climates.

The 1990s marked a turning point as American manufacturers began to refine the chemical extrusions specifically for North American stressors. They moved away from the “European tilt-turn” model toward the “American double-hung,” integrating traditional aesthetics with modern chemical stability. This era saw the introduction of fusion-welded corners—a process that uses heat to bond the frame into a single, seamless piece, effectively eliminating the mechanical fasteners that were prone to leaking.

Today, we are in the era of “Composite Vinyl.” Leading manufacturers are now co-extruding vinyl with wood fibers, fiberglass, or metal reinforcements. This evolution has moved vinyl from the “economy” tier into the “performance” tier, where it now competes with aluminum-clad and solid fiberglass systems in luxury residential projects. The modern American vinyl window is a triumph of industrial chemistry, offering a thermal-to-cost ratio that is currently unmatched by any other material in the mass market.

Conceptual Frameworks and Mental Models Top Vinyl Windows Plans

To evaluate vinyl fenestration with professional rigor, one should apply the following frameworks:

1. The “Coefficient of Linear Thermal Expansion” (CLTE)

Vinyl has a high CLTE, meaning it expands and contracts significantly more than the glass it holds. The mental model for a “top” plan must focus on the “Glazing Pocket”—the space where the glass sits. High-quality designs allow the glass to “float” within the vinyl, using flexible gaskets and deep pockets to prevent the expanding frame from crushing the primary glass seal.

2. The “Chamber-to-Wall” Ratio

Think of the window frame as a structural bridge. More internal chambers generally mean better thermal resistance, but only if the “wall thickness” of the vinyl is maintained. A mental model that favors “Thick-Wall, Multi-Chamber” designs ensures that the window can support the weight of heavy triple-pane glass without sagging over a 20-year period.

3. The “Infiltration-by-Compression” Model

Windows seal either through friction (sliding/double-hung) or compression (casement/awning). In a high-performance plan, the mental model prioritizes compression seals for the most exposed elevations of the house. This significantly reduces “Air Infiltration,” which is often a larger contributor to energy loss than the U-factor of the glass itself.

Key Categories and Variations in Vinyl Design

The “top” tier of vinyl is categorized by how it handles structural loads and thermal disruption.

Category	Structural Logic	Thermal Profile	Aesthetic Flexibility
High-Density uPVC	Thicker walls; Fusion-welded	Superior (multi-chamber)	Limited colors; Classic
Fiberglass-Reinforced	Internal pultrusions	Excellent	Large spans possible
Capstock / Co-Ex	Hardened outer “skin”	High	Dark colors (black/bronze)
Cellular PVC	Solid core (wood-like)	Moderate-High	Can be painted; Traditional
Hybrid Aluminum-Vinyl	Aluminum exterior	Moderate	Ultra-thin sightlines

Decision Logic: The Climatic Pivot

A plan for a residence in the Pacific Northwest should prioritize “Warm Edge Spacers” and high Visible Transmittance to combat the grey winters. Conversely, a plan for Florida must prioritize Impact Glazing and a high Design Pressure (DP) rating. The logic dictates that the “best” vinyl is the one that addresses the site’s most frequent stressor.

Detailed Real-World Scenarios Top Vinyl Windows Plans

Scenario A: The High-Wind Coastal Retrofit

A home on the coast of the Carolinas requires energy efficiency but must meet stringent wind-load codes.

• The Plan: Specify vinyl with internal galvanized steel reinforcements and a DP-50 rating.

• Failure Mode: Using standard vinyl without reinforcement, which may bow under wind pressure, allowing water to enter the wall cavity during a storm.

• Result: The “top” plan ensures that the window remains an airtight structural barrier, even during hurricane-force gusts.

Scenario B: The Dark-Frame Modernist Build

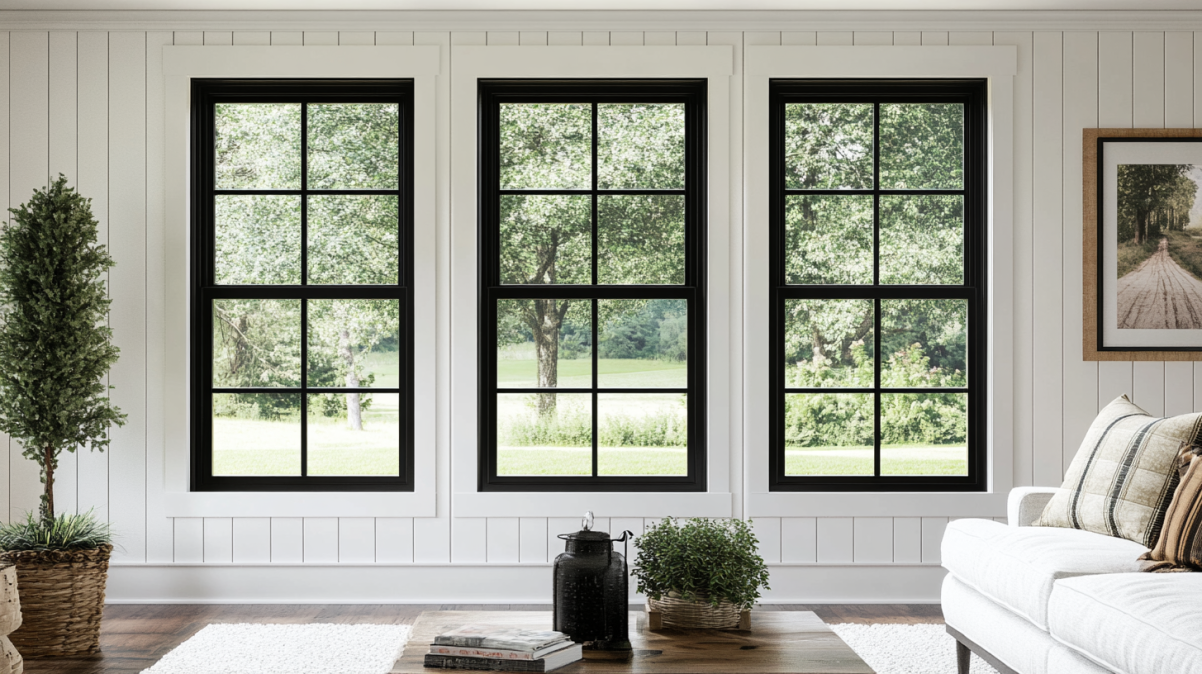

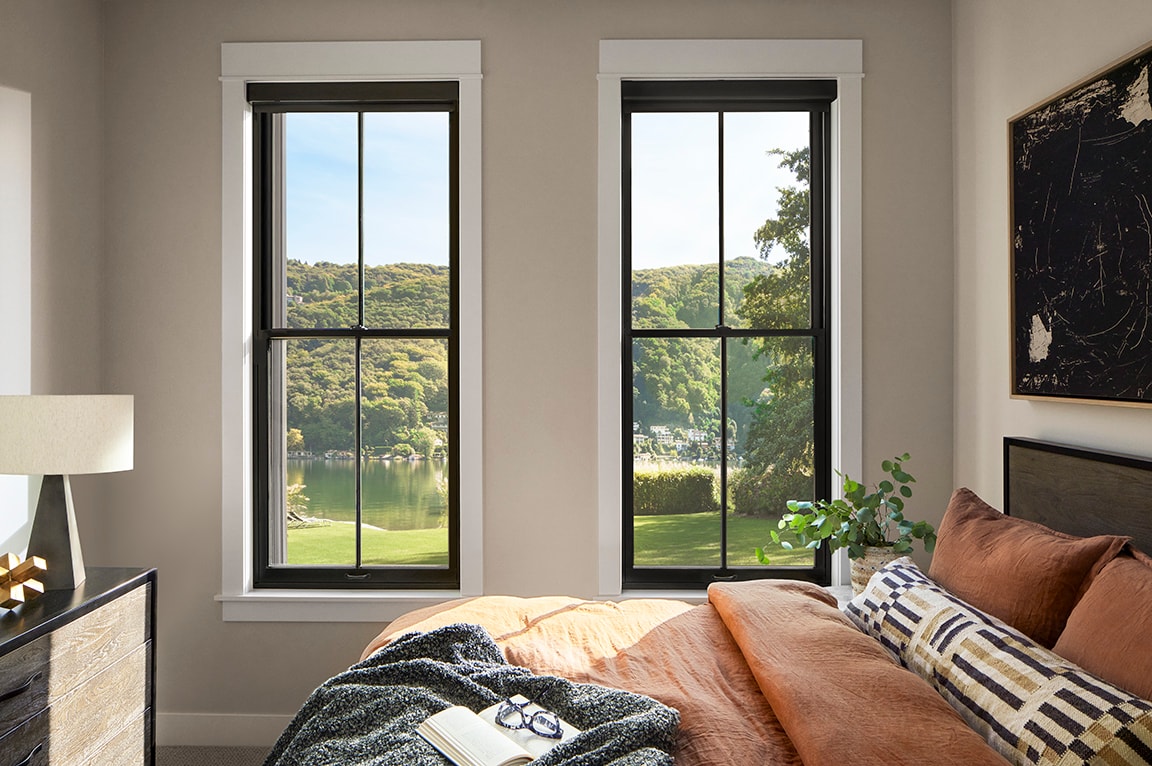

An architect wants “Black-on-Black” vinyl windows for a modern farmhouse aesthetic.

• The Plan: Utilize “Capstock” or “Laminated” vinyl extrusions. Standard painted vinyl will absorb too much heat, leading to frame warping.

• Failure Mode: Applying aftermarket paint to standard white vinyl frames, which voids the warranty and leads to heat-induced distortion within 24 months.

Scenario C: The Urban Sound-Reduction Project

A townhome located near a major rail line or airport.

• The Plan: High-chambered vinyl frames paired with “Asymmetric” triple-pane glass (different glass thicknesses).

• Second-Order Effect: The thick vinyl chambers act as acoustic baffles, turning a 75dB exterior environment into a 35dB interior “sanctuary.“

Planning, Cost, and Resource Dynamics

The economics of a vinyl window project involve a balance between the “Unit Cost” and the “Lifecycle Value.“

Range-Based Resource Allocation

Component	Standard Grade	Architectural Vinyl	Custom Composite
Per Opening (Unit)	$450 – $750	$900 – $1,500	$1,800 – $3,000
Installation Labor	$250 – $450	$400 – $700	$800 – $1,500
Lifespan (Years)	12 – 15	25 – 35	40+
Annualized Cost	High	Low	Moderate

The “Opportunity Cost” of choosing an economy-grade vinyl plan is the “Callback Risk.” In professional contracting, the cost of returning to a job site to fix a leaking or warped window five years after installation can erase the entire profit of the original project. A top vinyl windows plans approach mitigates this risk by investing in “Virgin Vinyl” (non-recycled) and high-quality hardware from the outset.

Tools, Strategies, and Support Systems Top Vinyl Windows Plans

Executing a high-end vinyl project requires a suite of technical supports to ensure “as-built” performance.

1. NFRC Certified Product Directory: The only unbiased tool for verifying the thermal claims of a manufacturer.

2. Thermal Imaging (FLIR): Used post-installation to ensure that the “rough opening” was properly insulated and that the fusion welds are continuous.

3. AAMA Gold Label: Verifying that the window passed structural, air, and water testing at the factory.

4. Acoustic Testing Reports (STC/OITC): Essential for projects where noise abatement is a primary goal.

5. Simulated Divided Lite (SDL) Kits: For historical aesthetics, ensuring that the “grilles” are permanently bonded to the exterior to mimic traditional wood.

6. Sill Pan Flashing Systems: A non-negotiable tool for preventing sub-sill rot in modern, airtight construction.

Risk Landscape and Failure Modes

The “Risk Taxonomy” of vinyl fenestration is largely centered on chemistry and structural integrity.

• The “Recycled Vinyl” Risk: Lower-tier manufacturers use “re-grind” or recycled PVC. This material often contains impurities that reduce UV stability, leading to yellowing or cracking.

• Structural Deflection: Large “Picture Windows” made of vinyl can sag if the header above them is not properly engineered. Because vinyl is less rigid than aluminum, the building’s structure must do more of the “heavy lifting.“

• The “Pocket Replacement” Fallacy: Installing a new vinyl window into a rotted old wood frame. This “scam” saves money upfront but traps moisture, leading to systemic structural failure within 10 years.

• Seal “Pumping”: In high-heat climates, the rapid expansion of the vinyl puts massive stress on the glass seals. If the “spacer” between the glass panes is metal (conductive), it can accelerate this failure.

Governance, Maintenance, and Long-Term Adaptation Top Vinyl Windows Plans

A vinyl window is not a “maintenance-free” product; it is a “low-maintenance” product. Governance is required to ensure it reaches its 30-year potential.

The Lifecycle Governance Checklist

• Bi-Annual: Inspect the “Weep Holes” at the bottom of the frame. If these are blocked by dust or debris, water will back up into the frame and eventually the house.

• Annual: Lubricate the stainless-steel tracks and lock points with a “Dry” silicon spray. Avoid oil-based lubricants, which attract grit and accelerate wear.

• 5-Year Interval: Inspect the exterior perimeter sealant (caulk). In the U.S., UV radiation will destroy the bond between the vinyl and the siding long before the window itself fails.

• Adjustment Triggers: If a sash becomes difficult to lock, it indicates the building has settled. Adjusting the “keepers” immediately prevents the vinyl from permanently deforming.

Measurement, Tracking, and Evaluation

How do you evaluate the success of a vinyl fenestration plan?

• Leading Indicators: The “Air Infiltration Rate” (aim for <0.05 cfm/sqft) and the “Condensation Resistance” factor. If you see water on the inside of the glass in winter, your plan has a thermal bridge failure.

• Lagging Indicators: Long-term JD Power satisfaction scores and the absence of “Seal Failure” (fogging) after 10 years.

• Documentation:

  1. The NOA (Notice of Acceptance): Specifically for coastal zones, proving the window meets hurricane codes.

  2. The Serial Number Map: Every unit has a serial number etched in the corner of the glass or on the head of the frame; keep a record for future warranty claims.

Common Misconceptions and Oversimplifications Top Vinyl Windows Plans

• Myth: “Vinyl windows cannot be painted.” Reality: Modern cellular PVC can be painted, but standard uPVC requires specific factory coatings to avoid heat-distortion.

• Myth: “Triple-pane is always better.” Reality: In the South, the “U-factor” benefit of triple-pane is often outweighed by the loss of “Solar Heat Gain” control.

• Myth: “Vinyl is a ‘cheap’ material.” Reality: High-performance architectural vinyl is an engineered composite that often outperforms standard wood or aluminum.

• Myth: “Argon gas leaks out quickly.” Reality: High-quality manufacturers have a leak rate of less than 1% per year; the gas remains effective for decades.

• Myth: “New windows solve mold issues.” Reality: New, airtight windows can actually increase interior humidity if the home’s ventilation is not upgraded simultaneously.

Ethical and Practical Considerations

In the modern context, the ethics of vinyl involve “Recyclability” and “Embodied Carbon.” While PVC is carbon-intensive to produce, its superior thermal performance often results in a lower “Lifecycle Carbon” footprint than less efficient materials. Furthermore, the move toward “Post-Consumer Recycling” of vinyl frames is becoming a hallmark of ethical manufacturing in the U.S. market. A top vinyl windows plans should prioritize manufacturers who offer “Take-Back” programs at the end of the window’s 30-year life.

Conclusion: The Architecture of Equilibrium

The pursuit of top vinyl windows plans is an exercise in finding the equilibrium between cost, comfort, and durability. The modern vinyl window has moved beyond its origins as a plastic substitute to become a pillar of contemporary building science. By focusing on chemical stability, multi-chambered structural logic, and rigorous installation governance, the property owner transforms a potential point of failure into a permanent asset. In a world of increasing climatic volatility, the “best” plan is the one that prioritizes resilience over surface-level aesthetics, ensuring that the view of the world remains clear and efficient for the life of the building.
